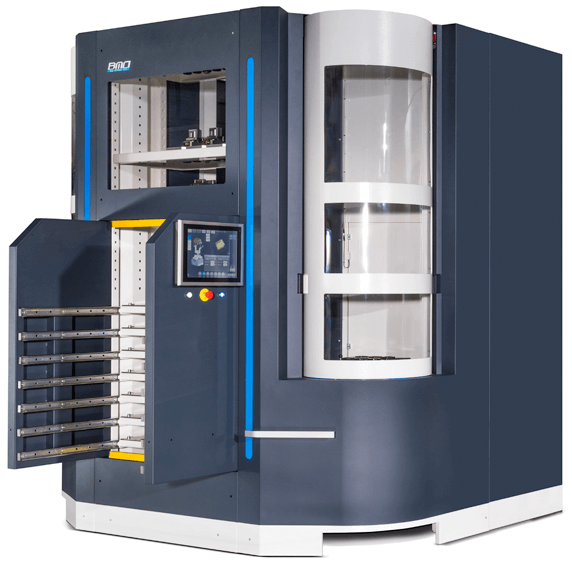

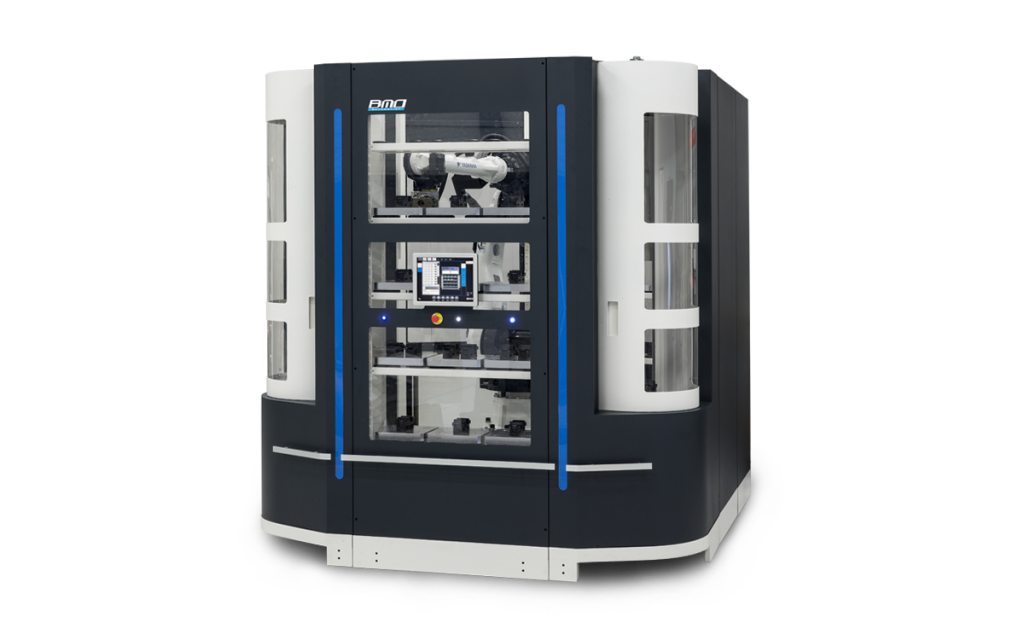

    Titanium 50

    The Titanium 50 offers a very extensive capacity on a small surface and is extremely suitable for flexibly automating larger and smaller series. The concept is set up in a modular way, with a choice of pallet and / or product loading. The automation solution has two pallet loading stations for manually changing pallets or providing them with material.

    Compact CNC automation with a high capacity

    A standard Titanium 50 with only pallet loading makes it possible to automate several different series of products together without the intervention of an operator. The BMO Titanium 50 can also be expanded very easily, the automation solution can always be linked to a second CNC machine to achieve even higher productivity.

    Experience unparalleled flexibility through the combination of pallet and product loading

    Do not make any concessions but enjoy the extensive possibilities that the Titanium series can offer. Whether it is the loading of a multitude of complex single pieces onto pallets or small product series via the product drawers. Due to the extensive pallet capacity and the flexible drawer system a high spindle efficiency can be achieved on one or two CNC machines.

    • Automation of lathes and milling machines
    • Loading of 1 or 2 CNC machines with 1 robot
    • Suitable for any brand of CNC machine
    • 6-axis robot with a maximum load of 50 or 80 kg
    • Standard pallet loading
    • Two independently operated pallet loading stations
    • Refilling products and pallets during operation
    • Capacity for 48 pallets 295x295mm or 96 pallets 295x150mm
    • Optional product handling module
    • By product module maximum seven product drawers
    • Many differten gripper options
    • Variable product heights due to a widely variable drawer system
    Width: 2550 mm
    Height: 2749 mm
    Depth: 4299 mm
    Weight: 3500 kg
    Maximum load robot: 50 or 80 kg
    Maximum product dimensions: 274 x 450 mm
    Maximum weight per drawer: 300 kg
    Maximum product height: 400 mm
    Product drawer dimensions: 875 mm x 420 mm
    Specifications: Platinum Frontloader Platinum Sideloader Titanium Titanium +
    Robot capacity: 24 / 50 / 80 kg 24 / 50 / 80 kg 50 / 80 kg 180 kg
    Type CNC machine: Both lathe and milling machines Both lathe and milling machines Both lathe and milling machines Both lathe and milling machines
    Position loaded CNC machine: Front of the CNC machine Side door of the CNC machine Front or side door CNC machine Front or side door CNC machine
    Number of CNC machines loaded: 1 2 2 2
    Number of drawers: Standard 4 (max. 7) Standard 4 (max. 7) Standard 4 (max. 7) Standard 4 (max. 7)
    Dimensions of drawers: 1600 x 520 mm of 1100 x 420 mm 1600 x 520 mm 875 x 420 mm 1600 x 620 mm
    Maximum load drawer: 300 kg 300 kg 300 kg 300 kg
    Maximum number of pallet positions: 16 16 96 100
    Pallet loading station: On top drawer On top drawer Independently operated pallet loading station Independently operated pallet loading station
    Optional Collet loading:
    Maximum number of collet positions: 18
    Safety: Floor scanner and / or fencing Closed system Closed system Closed system
    Characteristics
    • Automation of lathes and milling machines
    • Loading of 1 or 2 CNC machines with 1 robot
    • Suitable for any brand of CNC machine
    • 6-axis robot with a maximum load of 50 or 80 kg
    • Standard pallet loading
    • Two independently operated pallet loading stations
    • Refilling products and pallets during operation
    • Capacity for 48 pallets 295x295mm or 96 pallets 295x150mm
    • Optional product handling module
    • By product module maximum seven product drawers
    • Many differten gripper options
    • Variable product heights due to a widely variable drawer system
    Layout and dimensions
    Width: 2550 mm
    Height: 2749 mm
    Depth: 4299 mm
    Weight: 3500 kg
    Maximum load robot: 50 or 80 kg
    Maximum product dimensions: 274 x 450 mm
    Maximum weight per drawer: 300 kg
    Maximum product height: 400 mm
    Product drawer dimensions: 875 mm x 420 mm
    Pictures
    Comparison
    Specifications: Platinum Frontloader Platinum Sideloader Titanium Titanium +
    Robot capacity: 24 / 50 / 80 kg 24 / 50 / 80 kg 50 / 80 kg 180 kg
    Type CNC machine: Both lathe and milling machines Both lathe and milling machines Both lathe and milling machines Both lathe and milling machines
    Position loaded CNC machine: Front of the CNC machine Side door of the CNC machine Front or side door CNC machine Front or side door CNC machine
    Number of CNC machines loaded: 1 2 2 2
    Number of drawers: Standard 4 (max. 7) Standard 4 (max. 7) Standard 4 (max. 7) Standard 4 (max. 7)
    Dimensions of drawers: 1600 x 520 mm of 1100 x 420 mm 1600 x 520 mm 875 x 420 mm 1600 x 620 mm
    Maximum load drawer: 300 kg 300 kg 300 kg 300 kg
    Maximum number of pallet positions: 16 16 96 100
    Pallet loading station: On top drawer On top drawer Independently operated pallet loading station Independently operated pallet loading station
    Optional Collet loading:
    Maximum number of collet positions: 18
    Safety: Floor scanner and / or fencing Closed system Closed system Closed system

    Click on one of the buttons below for detailed information

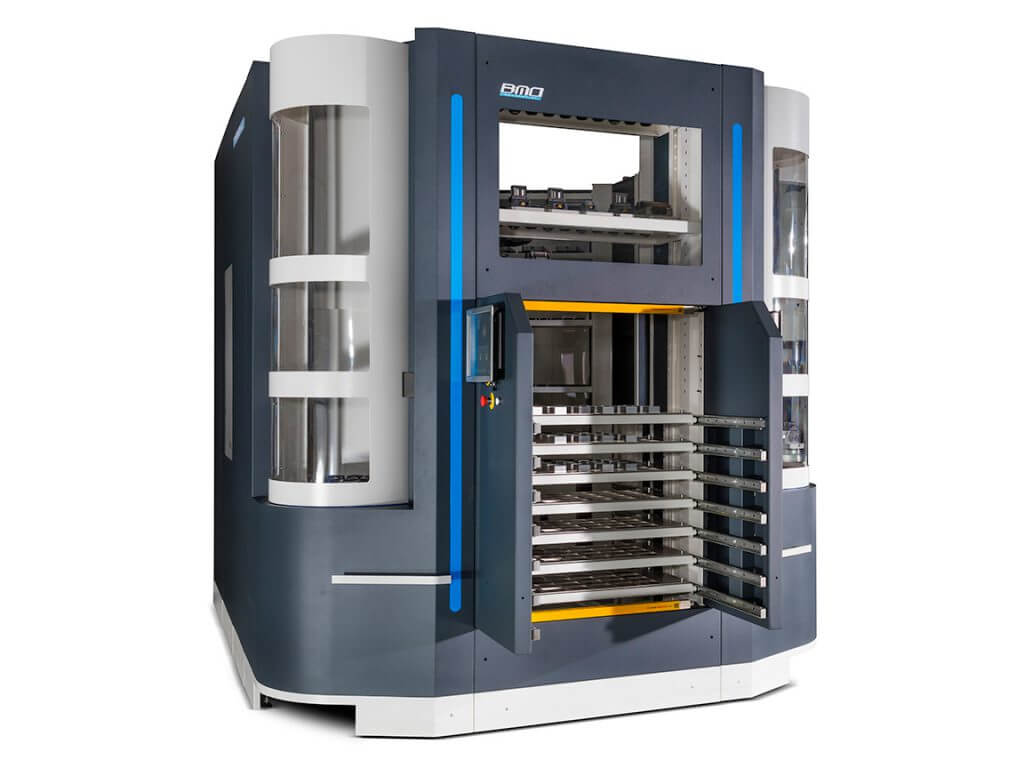

    Pallet handling module

    Pallet loading module

    Pallet loading module

    The standard Titanium 50 is fitted with a pallet module that facilitates an exceptionally high number of pallet positions. The operator can manually clamp products to a pallet and have the robot continuously load and unload them onto the CNC machine. The standard Titanium 50 has 16 pallet shelves that are 960 mm wide. This results in a pallet capacity of 48 pallets sized 295 x 295 mm with a maximum height of 350 mm. The top row of the racks provides nine pallet places without height restriction.

    • Capacity for 48 pallets 295x295mm or 96 pallets 295x150mm
    • Capacity for 39 pallets 295x295mm or 78 pallets 295x150mm (with Product Module)
    • Quickly load and unload pallets on two independently operated pallet loading stations without interruption of the production process
    • Maximum product size in pallet loading station (400x400x400mm)
    • Loading pallets with or without pneumatic clamping block
    • Loading pallets with manual fixtures
    • Including software BMO Intelligent Pallet Loading Solution (BIPL)
    • Multiple product series in one production run (24/7)
    Options:
    • Multiple pallet sizes in the robot cell
    • An optional rotation module can be included in one or two pallet loading stations
    • As another option a large dimension pallet exchange station can be included on the top product drawer
    Product handling module

    Product loading module

    Product loading module

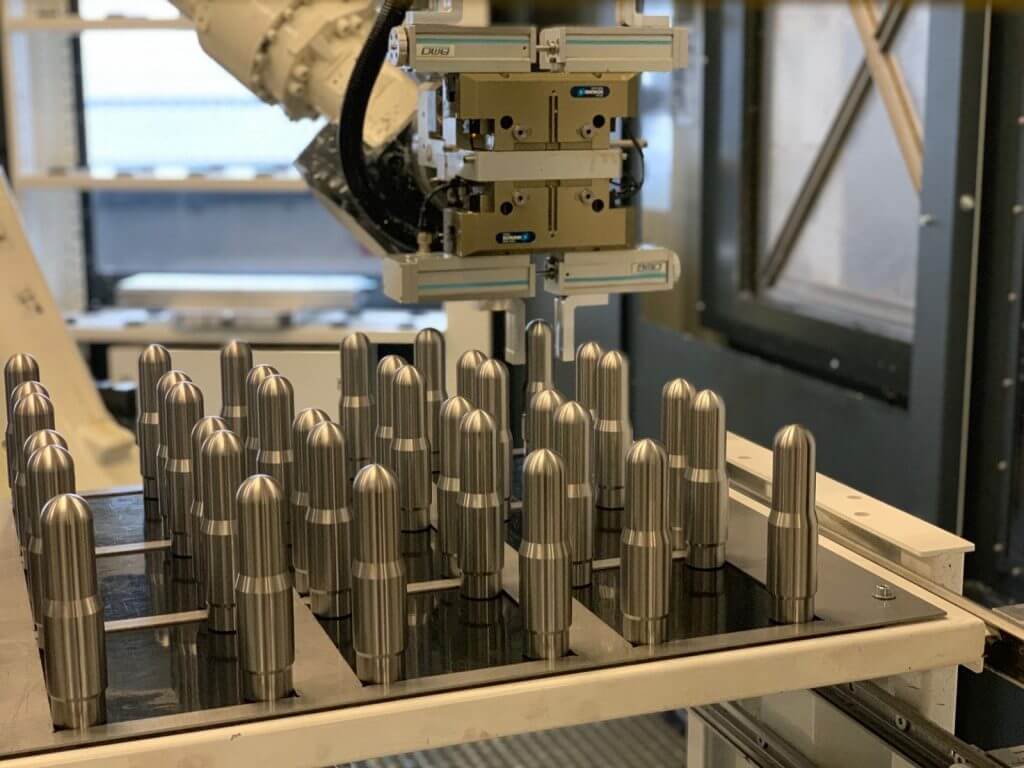

    The standard Titanium 50 is equipped for pallet loading. For business operators who want to obtain greater output from their CNC machine, BMO Automation also offers the option of choosing the product-loading module. This module also allows the robot to load individual products onto your CNC machine. The Titanium 50 with product and pallet loading has a flexible drawer system. The machine operator can fill this drawer system with the material for machining. The robot autonomously slides these productdrawers to it in order to pick up raw materials and load them onto the CNC machine. After processing, the robot places the machined products back in the drawer and slides them to the middle position. The operator can then pull out the drawer and empty all the finished products it contains. This means drawers can be loaded and unloaded during operation without interrupting the production process.

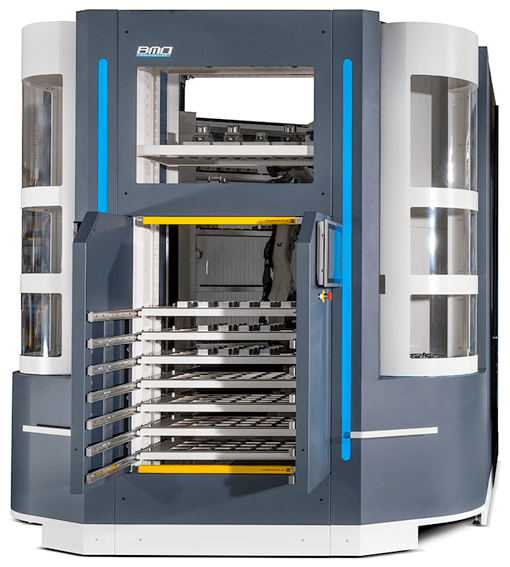

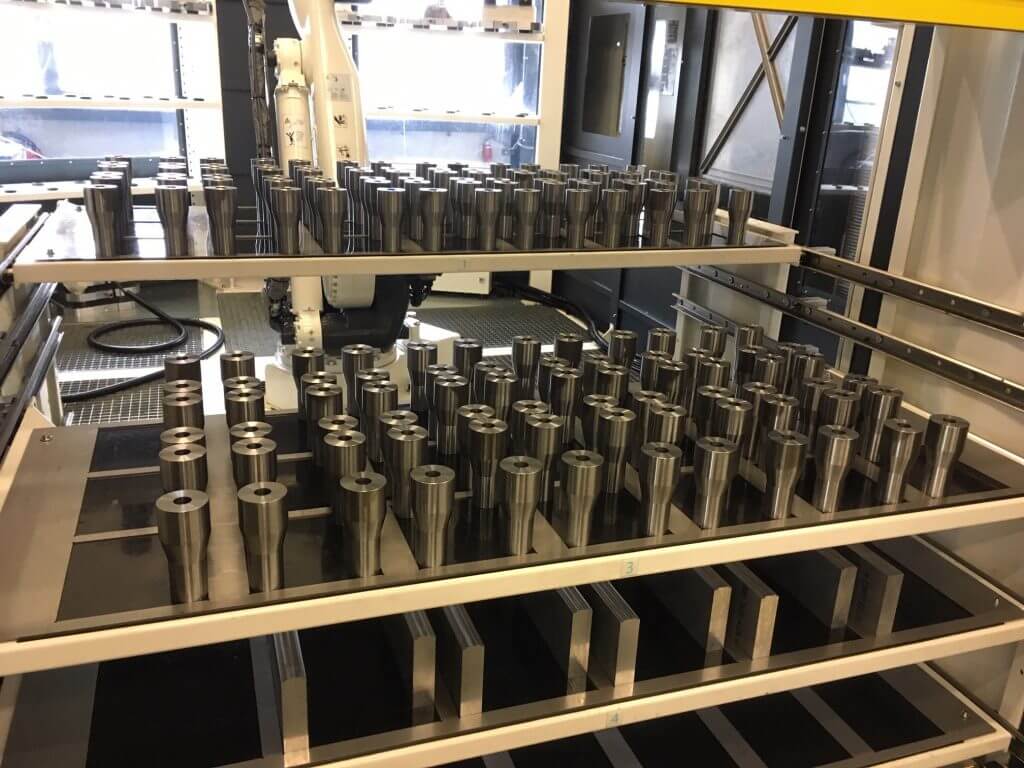

    The drawer system can be configured as required. The standard configuration consists of four drawers, all with dimensions of 875 x 420 mm. The Titanium 50 can be expanded up to a maximum of seven drawers. Each drawer can carry a maximum weight of 300 kg. If the product module is chosen, the robot comes with a gripper exchange system that allows the robot to attach both pallets and grippers. This allows the robot to mount both pallets and grippers. The product drawers can be provided with different grids, optimizing the available space for your products. This allows you to store as many products as possible in the Titanium 50 for the highest possible number of spindle hours. The variable drawer system also makes it possible to automate products with different heights.

    With product loading from BMO Automation you are flexible, modular and gain a guaranteed higher output.

    • Standard four robust product drawers (maximum seven)
    • Product drawer dimensions: 875mm x 420mm
    • Maximum load per draw of 300 kg
    • Many different gripper options
    • Variable product heights due to a widely variable drawer system
    • Refilling of products and pallets during operation
    • Optional multifunctional reversable drawer
    • Optional axle loading module including special axle grid

    Fixtures

    Fixtures

    Fixtures

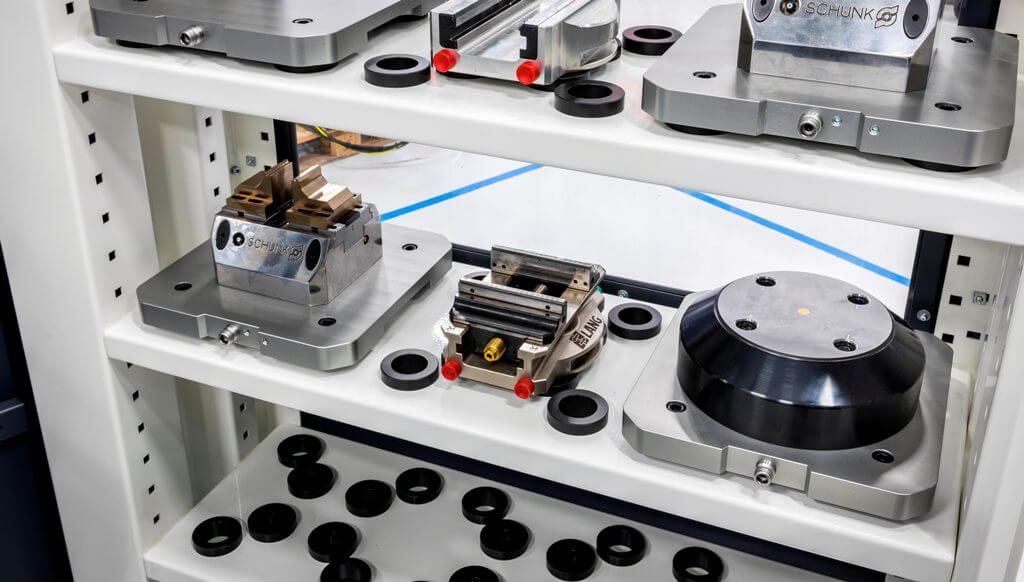

    BMO Automation is a total solution provider. In addition to robot automation, we also ensure that your CNC machine is prepared and equipped with a zero point clamping system which is developed by BMO. This “chuck plate” is equipped with pallet installation control and is tailor-made for the machine table of your CNC machine. The communication between the robot and the CNC machine is provided through a customized interface developed by BMO. In addition, we provide various other options to make the work as easy as possible for the operator.

    • Pallets in many different sizes (with or without pneumatic feed through)
    • Use many different types of machine clamps
    • Integration kit for manual control of the zero point clamping system
    • Integration kit for manual control of the pneumatic clamping block

    BMO Intelligent Control System

    BMO Intelligent Control System

    BMO Intelligent Control System

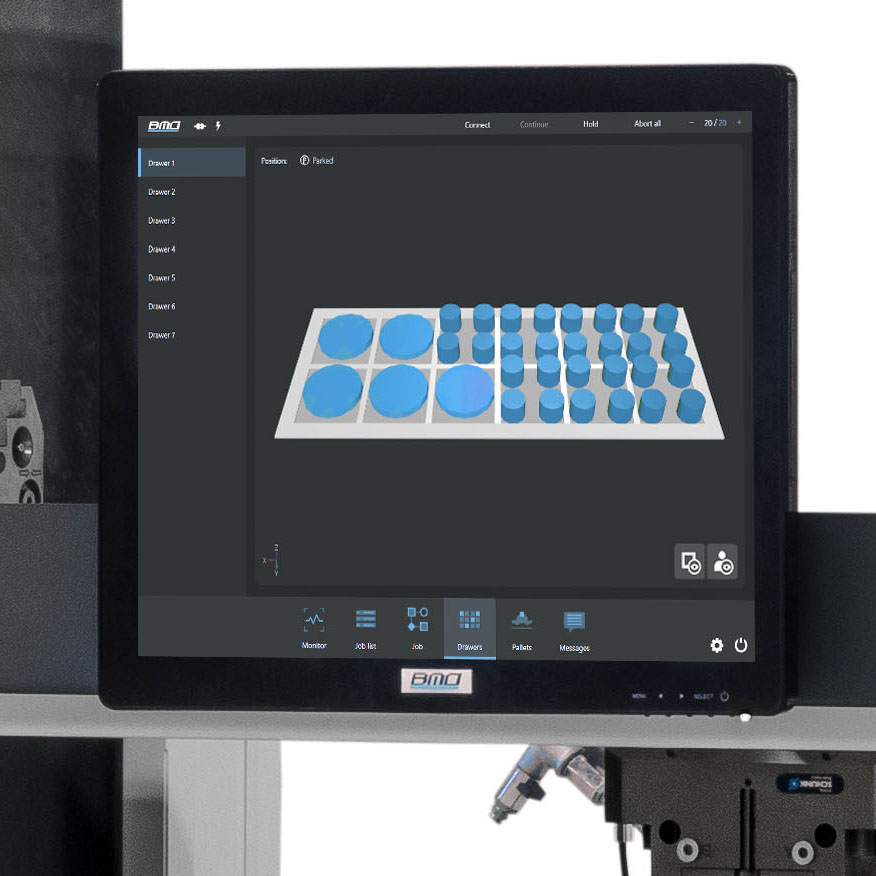

    Simple and User-Friendly

    The Titanium 50 is operated by the BMO Intelligent Control System. This software makes it unnecessary to use the robot’s teach pendant. The operator controls the Titanium using two Multi-touch screens (IP67) mounted on the sides of the robot cell and connected to a high-end control system. No extensive robot knowledge is required to operate the Titanium 50. After the installation of the Titanium your operators receive a day-long training. This day consists of a theoretical training from the BMO Software with all the chosen options and a practical training with your own products. After the training, your operators are independently capable of controlling the robot.

    The Titanium 50 with product and pallet loading allows you to work with two different job types. ‘Product jobs’ for loading products in the machine clamp and ‘Pallet jobs’ for loading pallets on the zero point clamping system in the CNC machine. The pallet job has a range of functionalities. Since the system has two exchange stations, pallets can be quickly replenished. The software records the status of the pallets.

    Production of a new job is commenced by entering different parameters, product dimensions, product quantities, gripper selection and machine clamp properties. The very intuitive operating procedure is so simple that a new job can be created within one minute. The software not only offers great advantage when initiating the process but also when monitoring it. Remaining times, cycle times and processed products are calculated and, if you opt for the optional mail module, can also be retrieved remotely.

    The manual operation of the machine clamp, robot gripper and access door of the cell can also be controlled via the touch screen. In addition, the speed of the robot can be controlled by the software and various software options can be implemented.

    • Operation via two Multi-touch screens
    • Robot jobs can be programmed within 1 minute
    • Equipped with remote support module
    • Mail module for status updates
    • BMO Jobmanager to handle multiple jobs in a row
    • Easy-to-use menu layout with clear symbols

    Servo gripper

    Servo gripper

    BMO servo gripper

    To ensure optimal flexibility, BMO Automation offers a choice of many different gripper options. There is a gripper solution for every product.

    BMO has developed the servo jaws to enable the greatest possible flexibility. Selecting this option means that the parallel or three-point gripper is fitted with automatically adjustable gripper jaws. By means of a simple operation, the operator is able to enter the product’s size into the BMO Intelligent Control, after which the servo gripper automatically adjusts to the entered size. As a result, multiple product sizes can be loading in a fully automated manner as part of a single continuous process. Gripper fingers no longer have to be switched manually.

    With a parallel gripper, products can be grasped in the range of 0 to 164 mm or 109 to 274 mm without the intervention of the operator.

    A three-point gripper can grab round products in a range of 3 to 196 mm or 144 to 310 mm without operator intervention.

    Automatic door on CNC Machine

    Automatic door on CNC machine

    Automatic door on CNC machine

    More and more CNC machines are delivered with an automatic door or can be equipped with this option afterwards. BMO Automation can provide an automatic door module for new and old CNC machines that do not have this option. This can be either the automation of an existing door or the installation of the automatic door module developed by BMO.

    • Automation of existing doors of the CNC Machine (front and side door)
    • Installation and assembly of the BMO door module
    • Suitable for new and older CNC machines

    Optional functionalities

    At BMO Automation you can enter at any desired level of automation because all our automation systems can be equipped with upgrades and options afterwards. This way you have the possibility to start on a small scale and upgrade your robot automation at a later stage if desired. Below you will find a small selection of our optional functionalities.

    • null

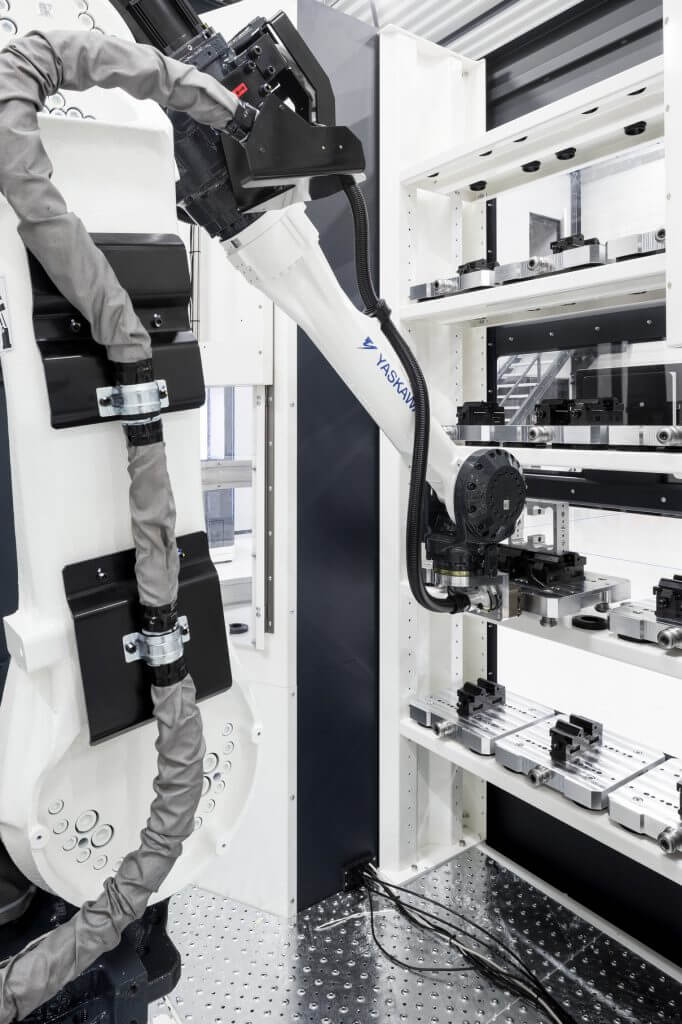

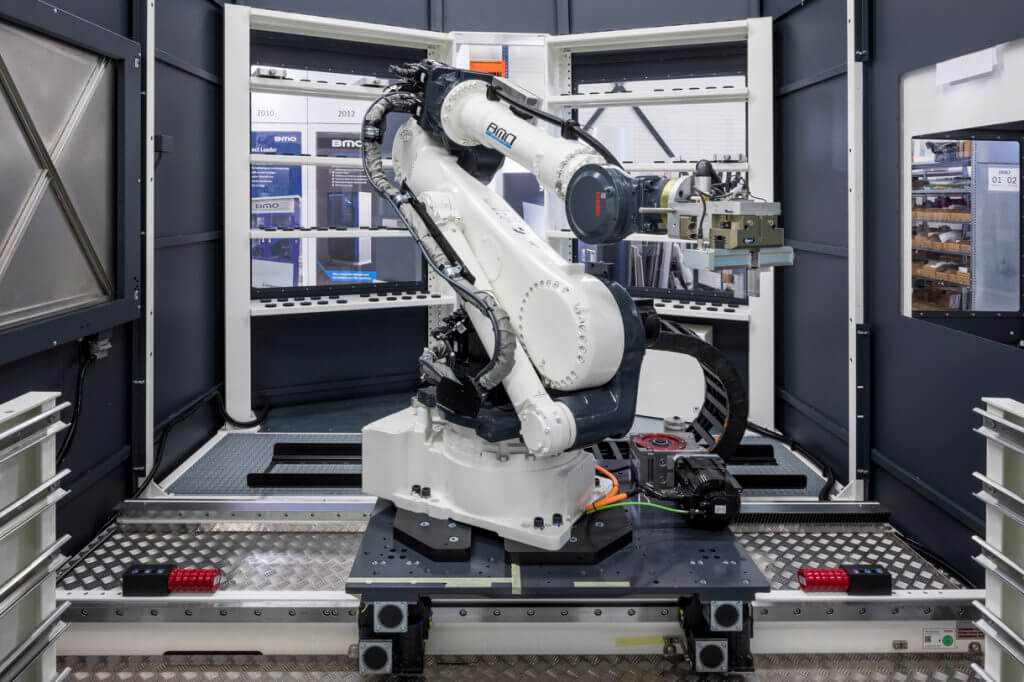

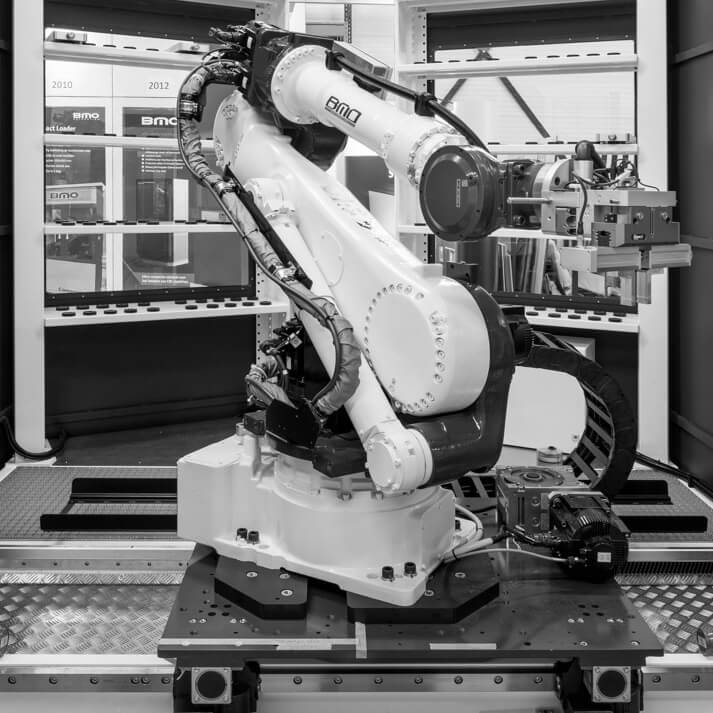

      Track in the Titanium for increasing the reach of the robot

      Increase the reach of the robot by placing it on a linear slide. Addition of a seventh axis.

    • null

      BMO Clamping Block Pressure Control

      Easily adjust the clamping force of the machine clamp in the software. This can be entered into the BMO Intelligent Control System for every individual job by a simple operation.

    • null

      Flexible layout of pallet racks

      Extra flexibility due to the possibility to use multiple pallet sizes in the robot automation solution. The advantage is that you optimally use the capacity of the robot cell due to this flexibility.

    • null

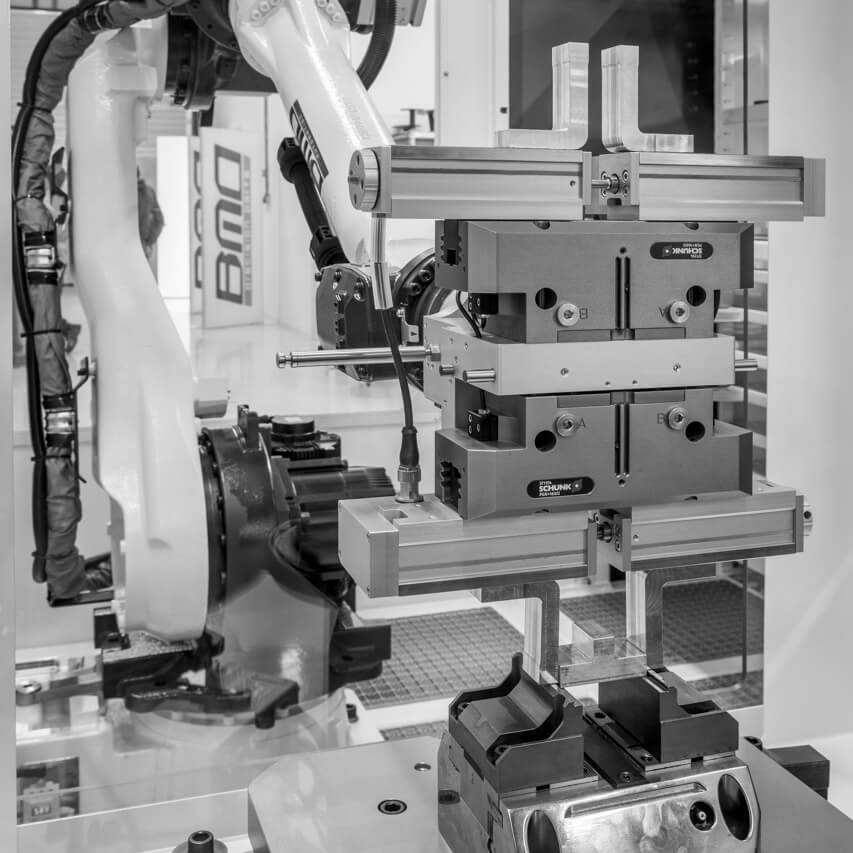

      BMO Gripper Pressure Control System

      This option gives the operator the possibility to program the gripper’s tensioning force in the software. This allows the operator to set the gripping force of the grab for every individual job.

    • null

      Pressure cylinder on the gripper

      With a pressure cylinder on the gripper, the product is pressed when it is set down and is pressed before it’s picking up, to make sure the operation is always accurate.

    • null

      BMO Jobmanager

      The BMO Jobmanager adds extra functionality to your machine. It allows the robot to perform multiple jobs in succession.

    • null

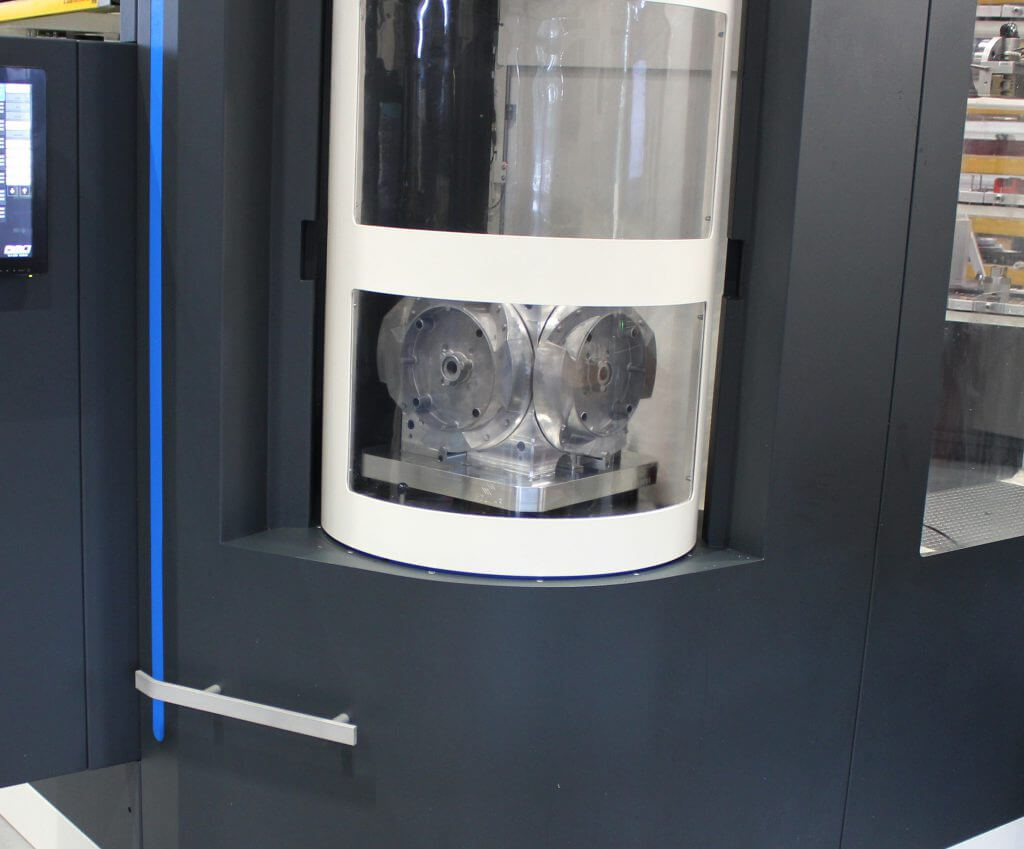

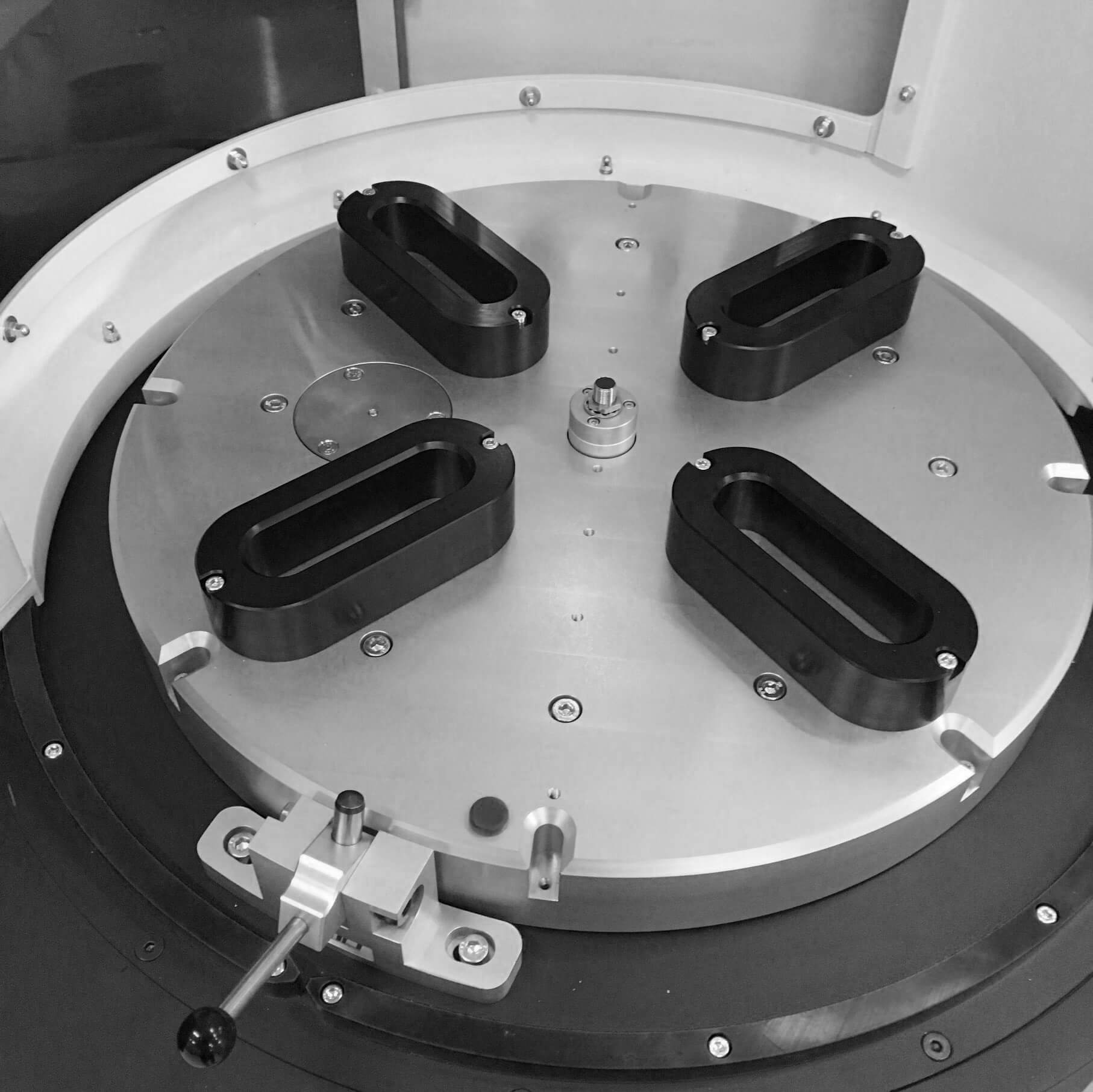

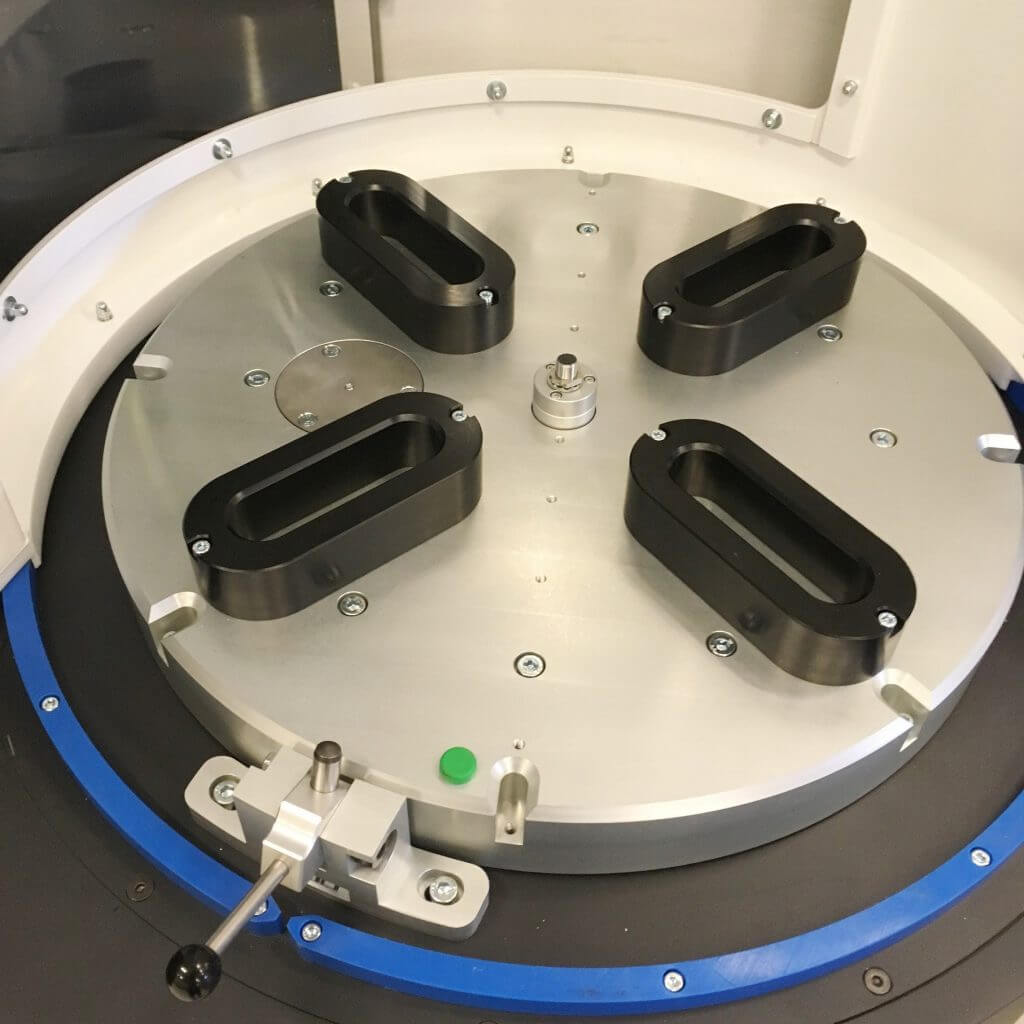

      Turntable in pallet loading station

      Rotating table in the left and / or right loaded station of the Titanium cell.

    • null

      Product revolve station Titanium series

      The reversing station offers the operator the possibility to program the robot to reverse the product and to place it back into the machining process. With the reversing station it is possible to mill all sides of the product.
