Hermle C400 automated by a BMO Platinum 20 Frontloader

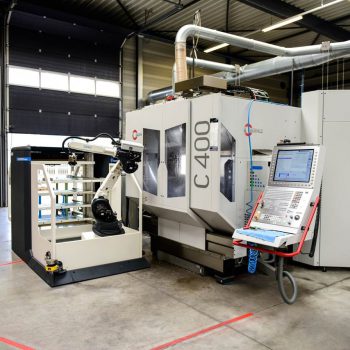

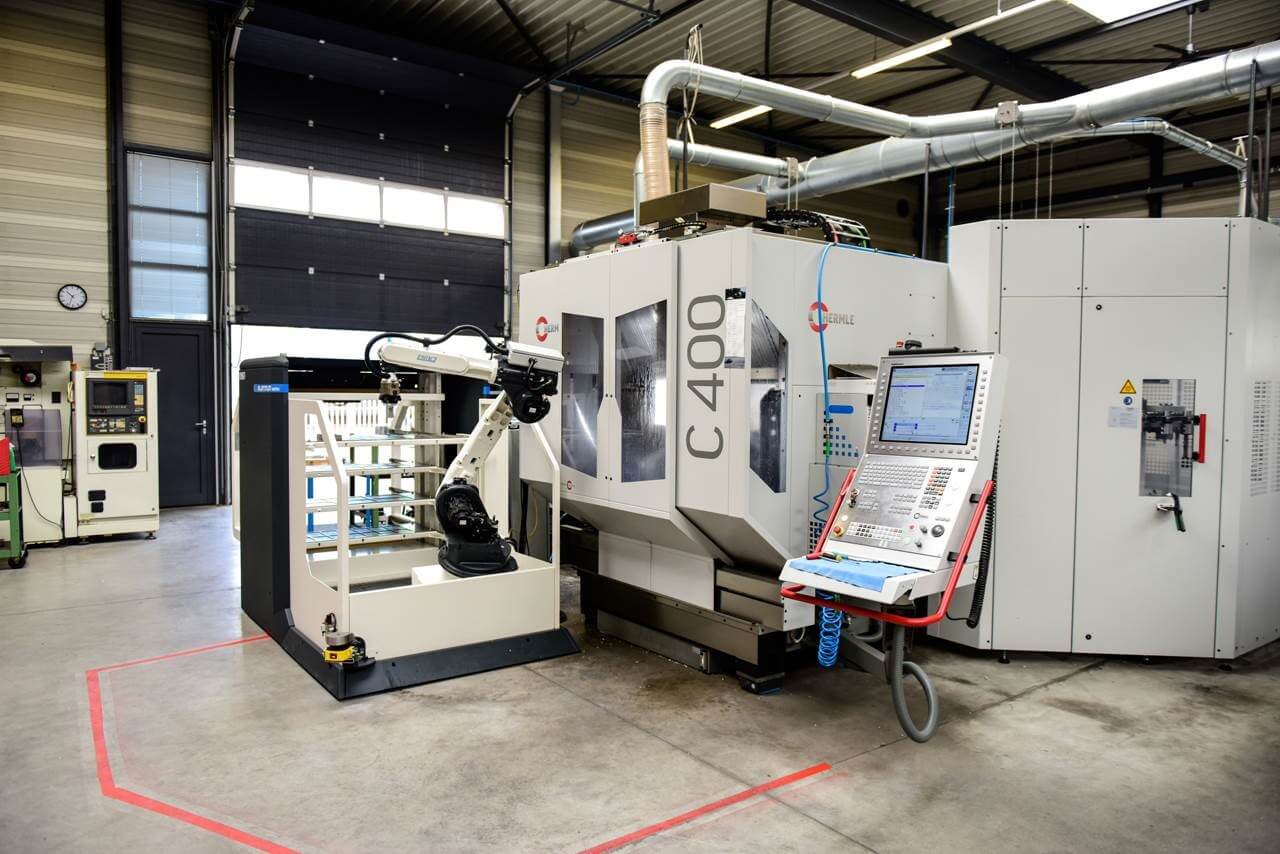

This compact BMO Platinum 20 Frontloader loads the Hermle C400 through the front door of the CNC machine. The safety is guaranteed by the floor scanners. In this combination it was decided to only use product loading on the  Hermle C400. This BMO robot cell includes the following specifications:

  • Platinum series
  • 20 kilogram robot
  • Product loading
  • Heidenhain machine interface (robot side)
  • Mail module
  • Pressure control on gripper
  • Pressure control on machine clamp
  • 4 product drawers (upgrade to 7 drawers is optional)

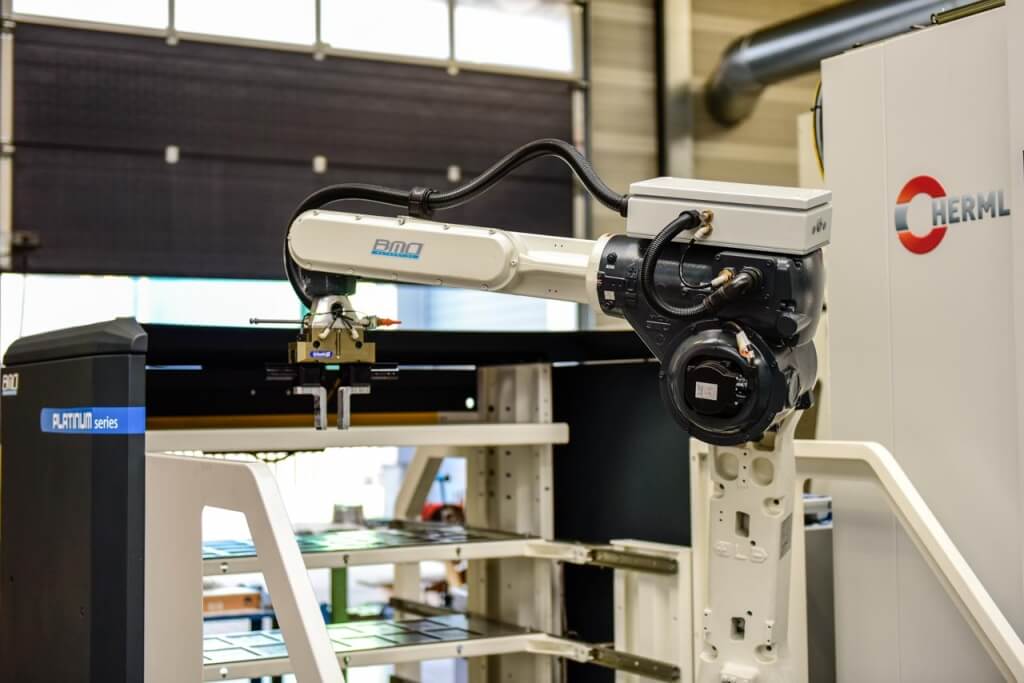

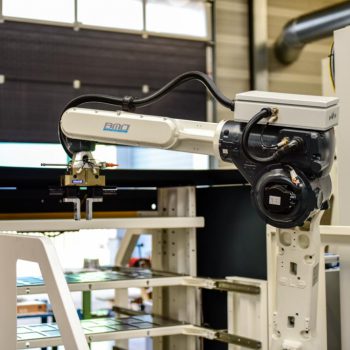

  • Single parallel gripper with manually adjustable jaws (also self-adjusting jaws are possible)
  • Floor scanner to optimize safety
