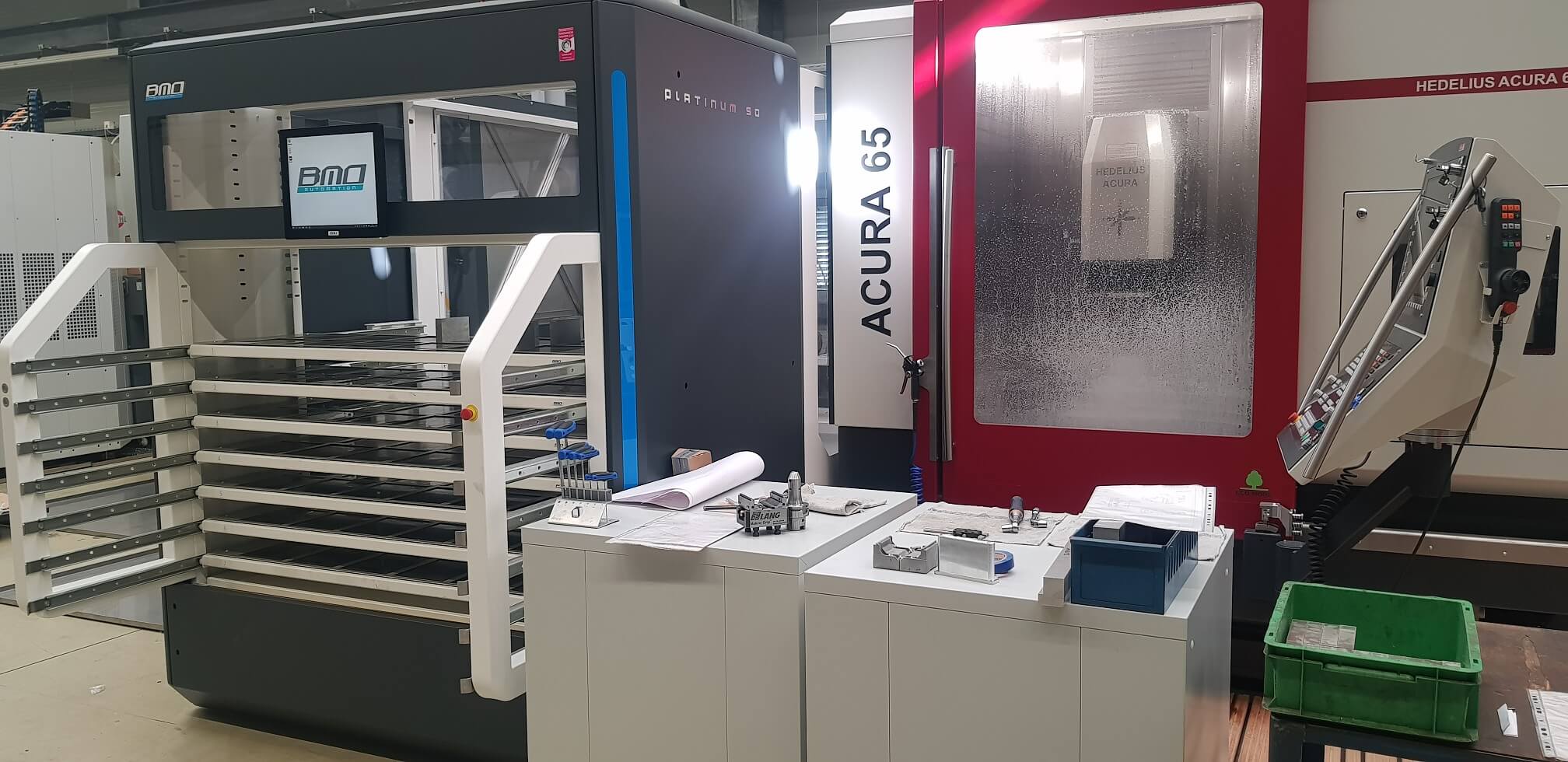

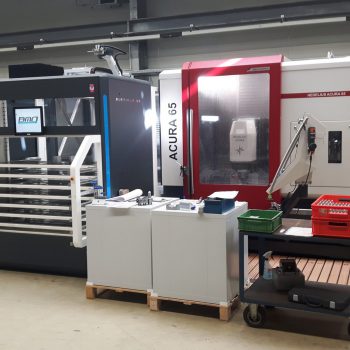

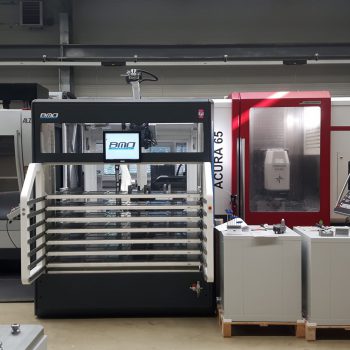

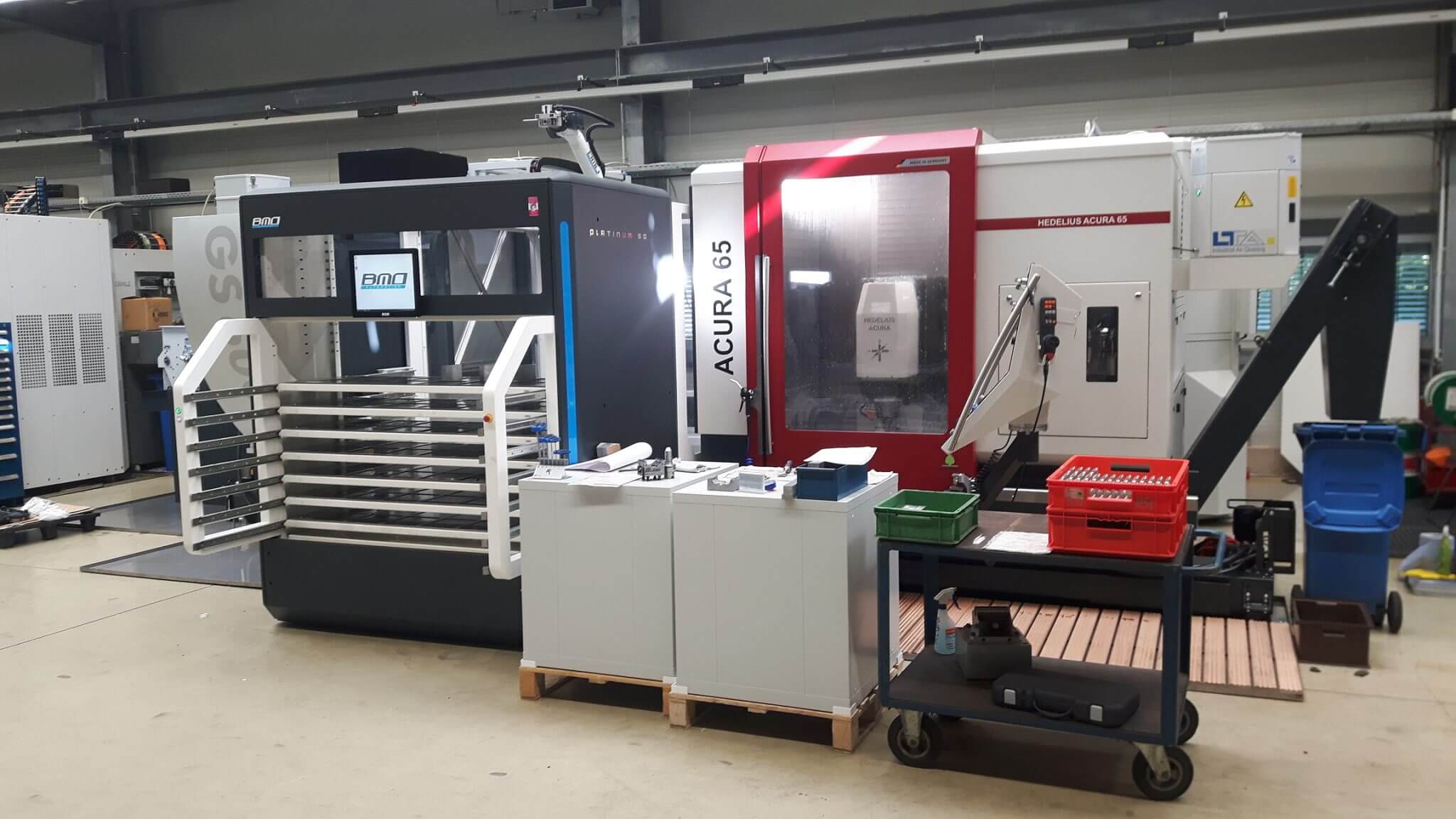

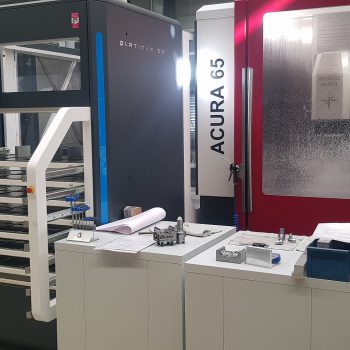

Hedelius Acura 65 EL automated by a BMO Platinum 50 Sideloader

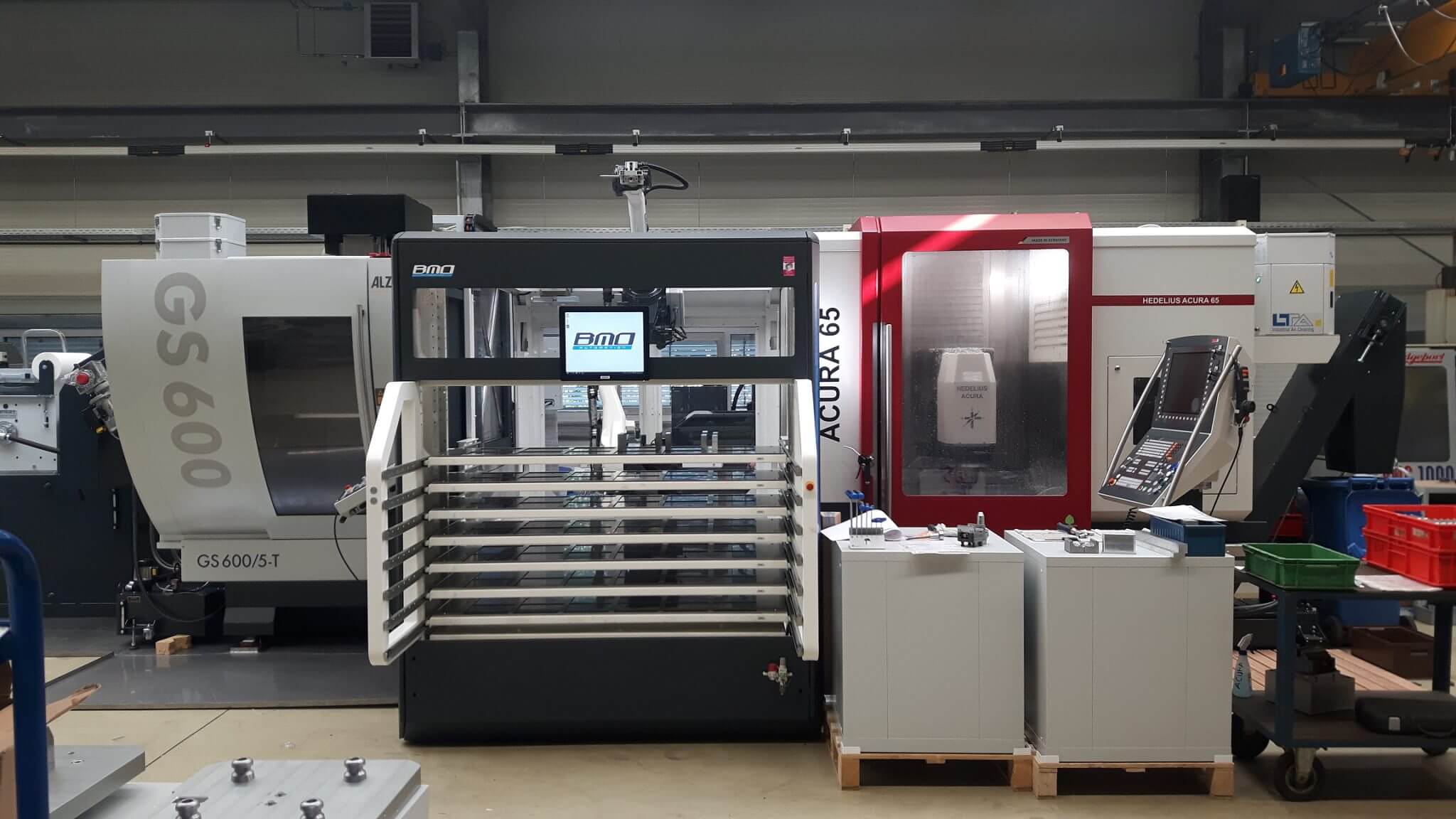

When a customer has two turning or milling machines, which are able to automate, it is possible to connect these CNC machines to one BMO robot cell. In this example a combination can be seen between a BMO Platinum 50 connected to Hedelius Acura 65 and an Alzmetall GS 600. The compact milling machine of Hedelius can easily be loaded with a product or pallet thanks to the 50 kilogram robot.

BMO Automation is a supplier of total solutions and provided all equipment for this customer. A 4-fold zero-point clamping system with medium throughput, pallets with clamping blocks from the Schunk brand and a number of pallets for manual clamping was chosen. BMO has also automated the side door of the CNC machine.

Platinum 50 Sideloader:

  • Machine interface Heidenhain
  • Automatic door on CNC machine
  • Double parallel gripper incl. BMO self-adjusting jaws
  • Pallet exchange station on top product drawer
  • BMO Gripper Pressure Control
  • BMO Clamping Block Pressure Control
  • Mail module
  • Signal lamp
  • Tool LifeTime Manager (TLM)
  • BMO Jobmanager
  • Program number selection on CNC machine
  • Pallet module including fixtures:
    • BMO 4-fold zero-point clamping system
    • BMO Pallets incl. pneumatic clamping block
    • Set BMO grip jaws

Click here for technical specifications about the Hedelius Acura 65 EL.

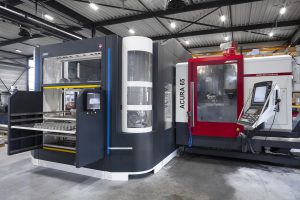

Hedelius Acura 65 EL – Titanium 180

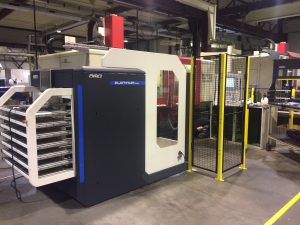

Hedelius RS80 – Platinum 24 Frontloader
